Explaining Models or Modelling Explanations

Challenging Existing Paradigms in Trustworthy AI

Delft University of Technology

Arie van Deursen
Cynthia C. S. Liem

May 8, 2025

Background

Economist, now PhD CS

How can we make opaque AI more trustworthy?

Explainable AI, Adversarial ML, Probabilistic ML

Maintainer of Taija (trustworthy AI in Julia)

Scan for slides. Links to www.patalt.org.

Scan for slides. Links to www.patalt.org.

Agenda

  • What are counterfactual explanations (CE) and algorithmic recourse (AR) and why are they useful?
  • What dynamics are generated when off-the-shelf solutions to CE and AR are implemented in practice?
  • Can we generate plausible counterfactuals relying only on the opaque model itself?
  • How can we leverage counterfactuals during training to build more trustworthy models?

Background

CE in Five Slides

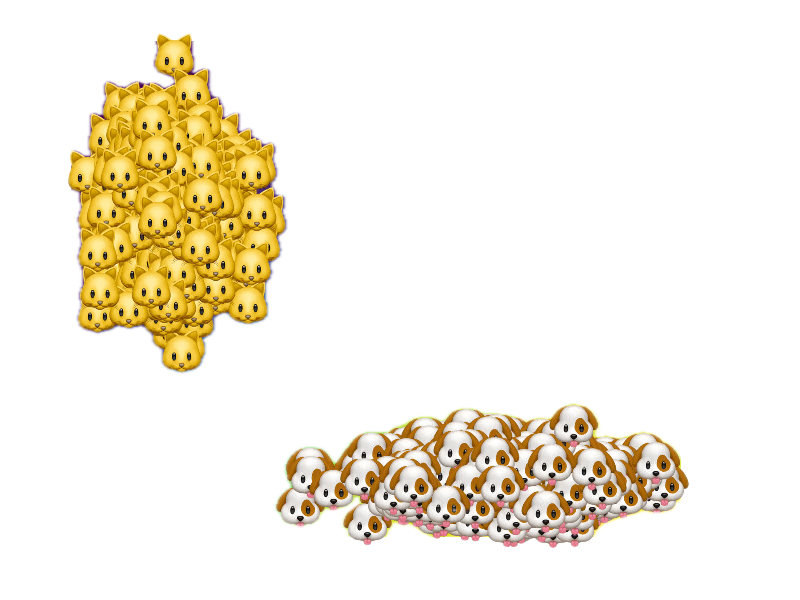

Cats and dogs in two dimensions.

Cats and dogs in two dimensions.

CE in Five Slides

Model Training

Objective:

\[ \begin{aligned} \min_{\textcolor{orange}{\theta}} \{ {\text{yloss}(M_{\theta}(\mathbf{x}),\mathbf{y})} \} \end{aligned} \]

CE in Five Slides

Model Training

Objective:

\[ \begin{aligned} \min_{\textcolor{orange}{\theta}} \{ {\text{yloss}(M_{\theta}(\mathbf{x}),\mathbf{y})} \} \end{aligned} \]

Solution:

\[ \begin{aligned} \theta_{t+1} &= \theta_t - \nabla_{\textcolor{orange}{\theta}} \{ {\text{yloss}(M_{\theta}(\mathbf{x}),\mathbf{y})} \} \\ \textcolor{orange}{\theta^*}&=\theta_T \end{aligned} \]

CE in Five Slides

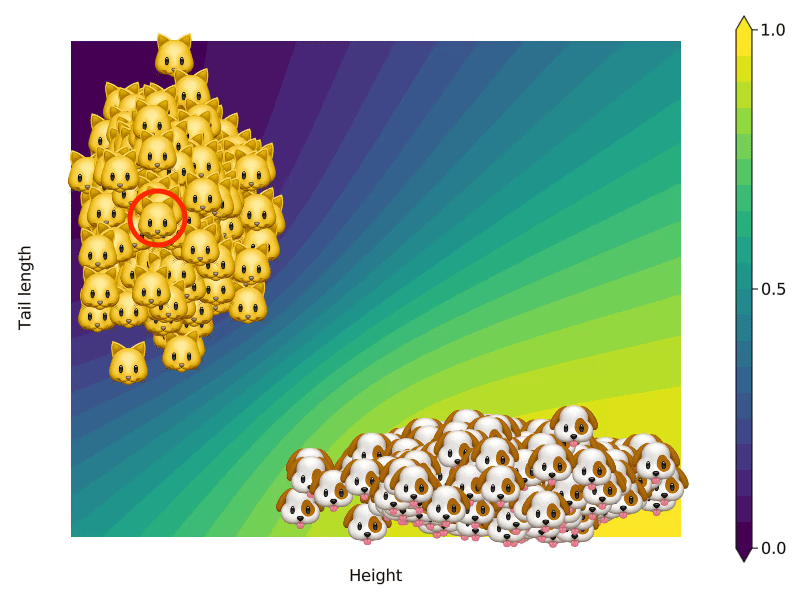

Fitted model. Contour shows predicted probability y=🐶.

Fitted model. Contour shows predicted probability \(y=🐶\).

CE in Five Slides

Counterfactual Search

Objective:

\[ \begin{aligned} \min_{\textcolor{purple}{\mathbf{x}}} \{ {\text{yloss}(M_{\textcolor{orange}{\theta^*}}(\mathbf{x}),\mathbf{y^{\textcolor{purple}{+}} })} \} \end{aligned} \]

CE in Five Slides

Counterfactual Search

Objective:

\[ \begin{aligned} \min_{\textcolor{purple}{\mathbf{x}}} \{ {\text{yloss}(M_{\textcolor{orange}{\theta^*}}(\mathbf{x}),\mathbf{y^{\textcolor{purple}{+}} })} \} \end{aligned} \]

Solution:

\[ \begin{aligned} \mathbf{x}_{t+1} &= \mathbf{x}_t - \nabla_{\textcolor{purple}{\theta}} \{ {\text{yloss}(M_{\textcolor{orange}{\theta^*}}(\mathbf{x}),\mathbf{y^{\textcolor{purple}{+}} })} \} \\ \textcolor{purple}{\mathbf{x}^*}&=\mathbf{x}_T \end{aligned} \]

CE in Five Slides

\[ \begin{aligned} \min_{\mathbf{Z}^\prime \in \mathcal{Z}^L} \{ {\text{yloss}(M_{\theta}(f(\mathbf{Z}^\prime)),\mathbf{y}^+)} + \lambda {\text{cost}(f(\mathbf{Z}^\prime)) } \} \end{aligned} \]

Counterfactual Explanations explain how inputs into a model need to change for it to produce different outputs1.

Counterfactual explanation for what it takes to be a dog.

Counterfactual explanation for what it takes to be a dog.

Algorithmic Recourse

Provided CE is valid, plausible and actionable, it can be used to provide recourse to individuals negatively affected by models.

“If your income had been X, then …”

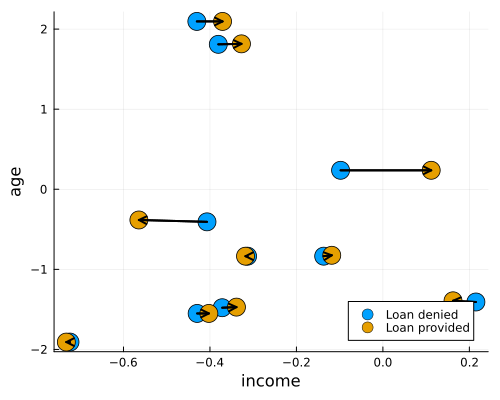

Figure 1: Counterfactuals for random samples from the Give Me Some Credit dataset (Kaggle 2011). Features ‘age’ and ‘income’ are shown.

Dynamics of CE and AR

Hidden Cost of Implausibility

AR can introduce costly dynamics1

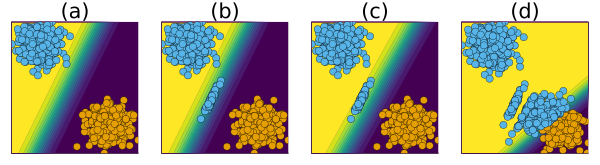

Endogenous Macrodynamics in Algorithmic Recourse.

Endogenous Macrodynamics in Algorithmic Recourse.

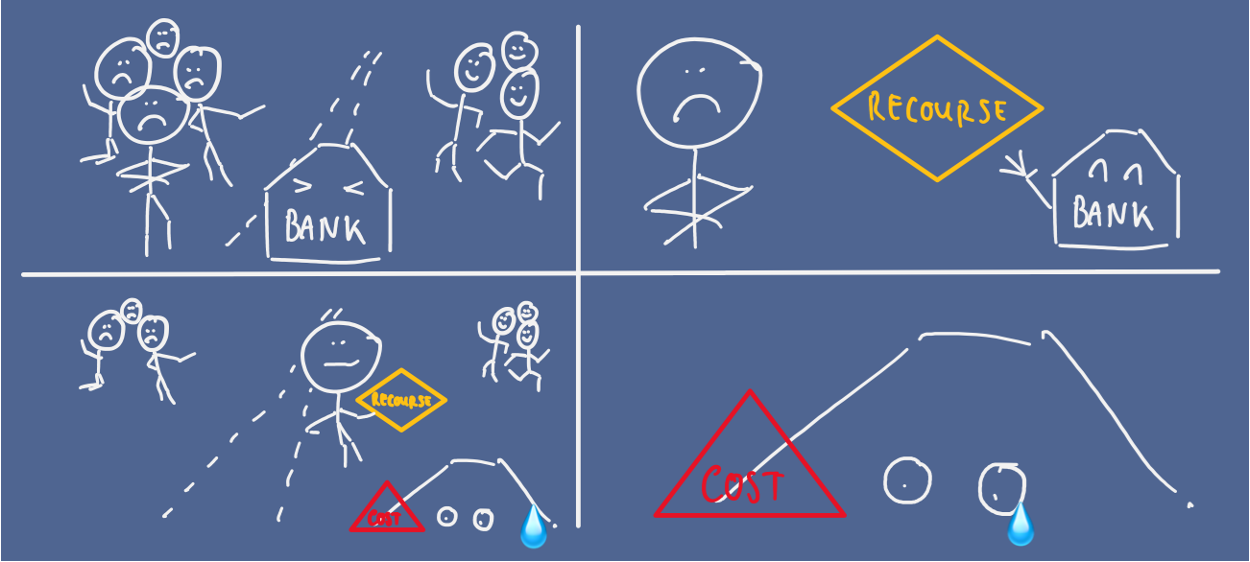

Figure 2: Illustration of external cost of individual recourse.

Insight: individual recourse neglects bigger picture.

Mitigation Strategies

  • Incorporate hidden cost in reframed objective.
  • Reducing hidden cost is equivalent to ensuring plausibility.

\[ \begin{aligned} \mathbf{s}^\prime &= \arg \min_{\mathbf{s}^\prime \in \mathcal{S}} \{ {\text{yloss}(M(f(\mathbf{s}^\prime)),y^*)} \\ &+ \lambda_1 {\text{cost}(f(\mathbf{s}^\prime))} + \lambda_2 {\text{extcost}(f(\mathbf{s}^\prime))} \} \end{aligned} \]

Plausibility at all cost?

Pick your Poison

All of these counterfactuals are valid explanations for the model’s prediction.

Which one would you pick?

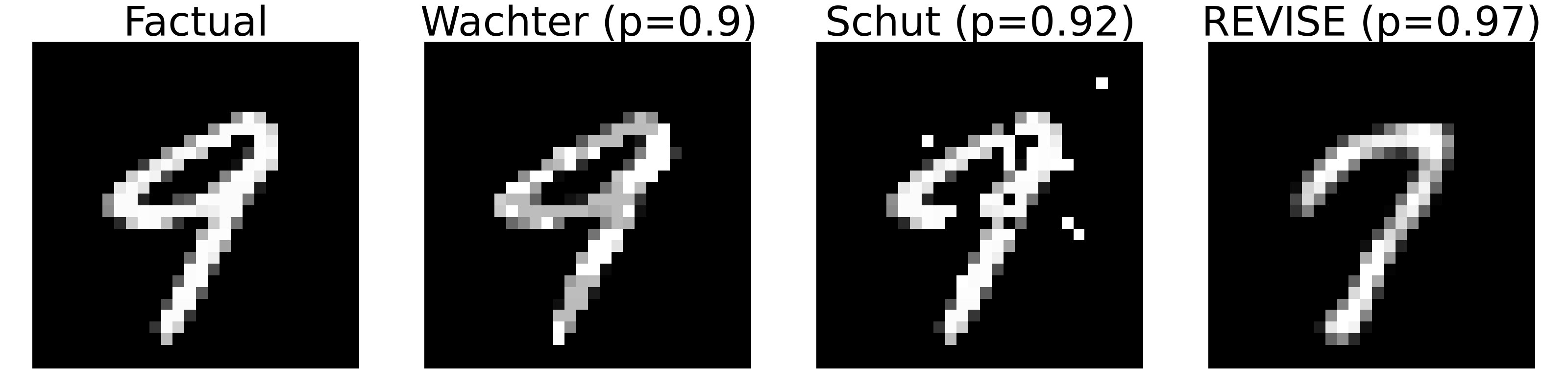

Figure 3: Turning a 9 into a 7: Counterfactual explanations for an image classifier produced using Wachter (Wachter, Mittelstadt, and Russell 2017), Schut (Schut et al. 2021) and REVISE (Joshi et al. 2019).

Faithful First, Plausible Second

Counterfactuals as plausible as the model permits1.

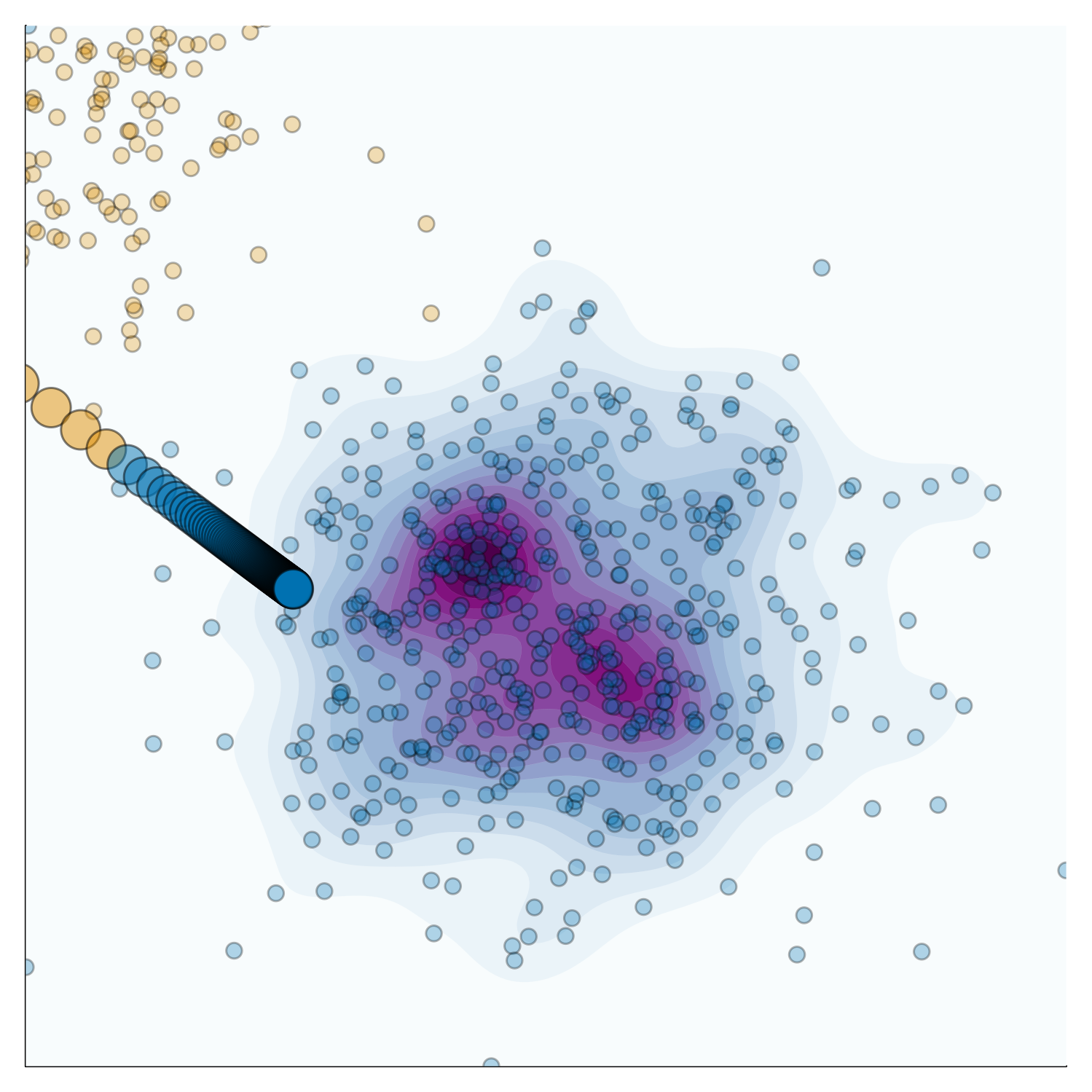

Figure 4: KDE for training data.

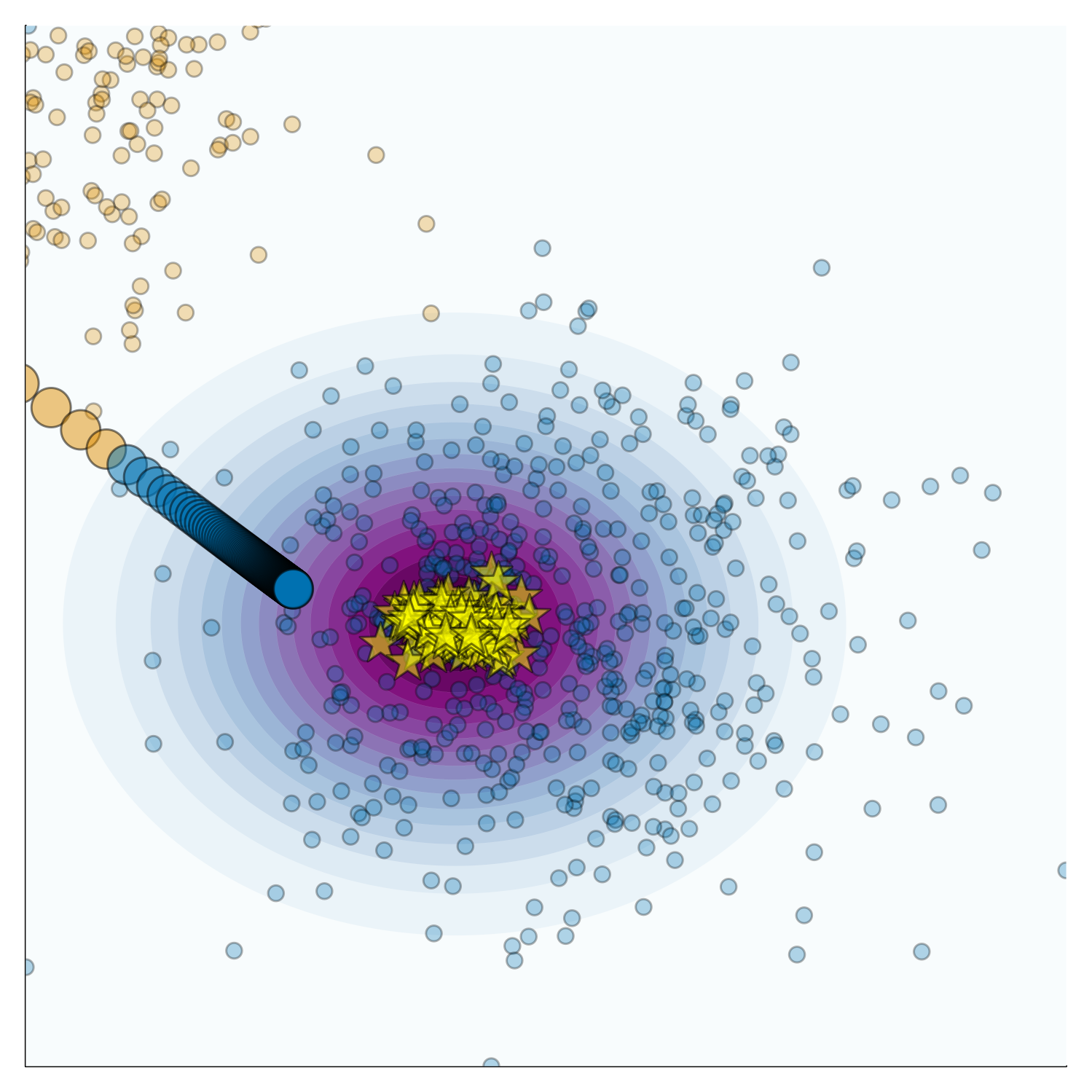

Figure 5: KDE for model posterior.

Faithful Counterfactuals

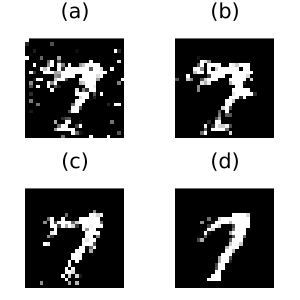

Figure 6: Turning a 9 into a 7. ECCCo applied to MLP (a), Ensemble (b), JEM (c), JEM Ensemble (d).

Insight: faithfulness facilitates

Figure 7: Results for different generators (from 3 to 5).

Teaching models plausible explanations

Counterfactual Training: Method

Idea

Let the model compare its own explanations to plausible ones1.

  1. Contrast faithful counterfactuals with data.
  2. Use nascent CE as adversarial examples.

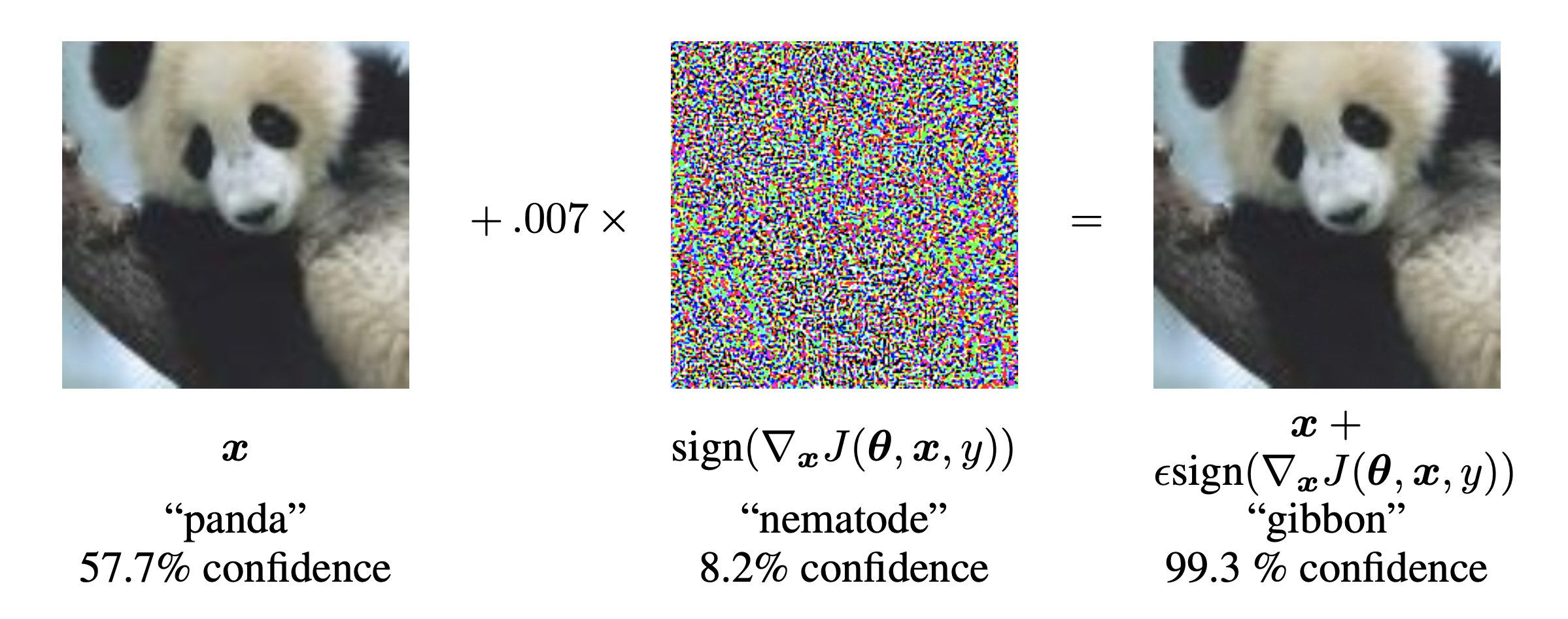

Example of an adversarial attack. Source: Goodfellow, Shlens, and Szegedy (2015)

Example of an adversarial attack. Source: Goodfellow, Shlens, and Szegedy (2015)

Counterfactual Training: Results

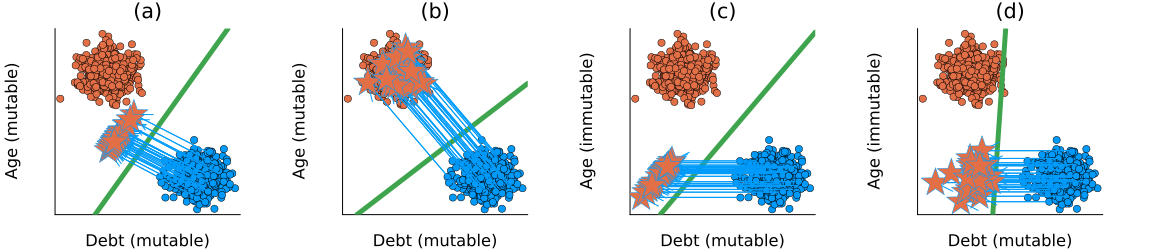

Figure 8: (a) conventional training, all mutable; (b) CT, all mutable; (c) conventional, age immutable; (d) CT, age immutable.
  • Models trained with CT learn more plausible and (provably) actionable explanations.
  • Predictive performance does not suffer, robust performance improves.

If we still have time …

Spurious Sparks of AGI

We challenge the idea that the finding of meaningful patterns in latent spaces of large models is indicative of AGI1.

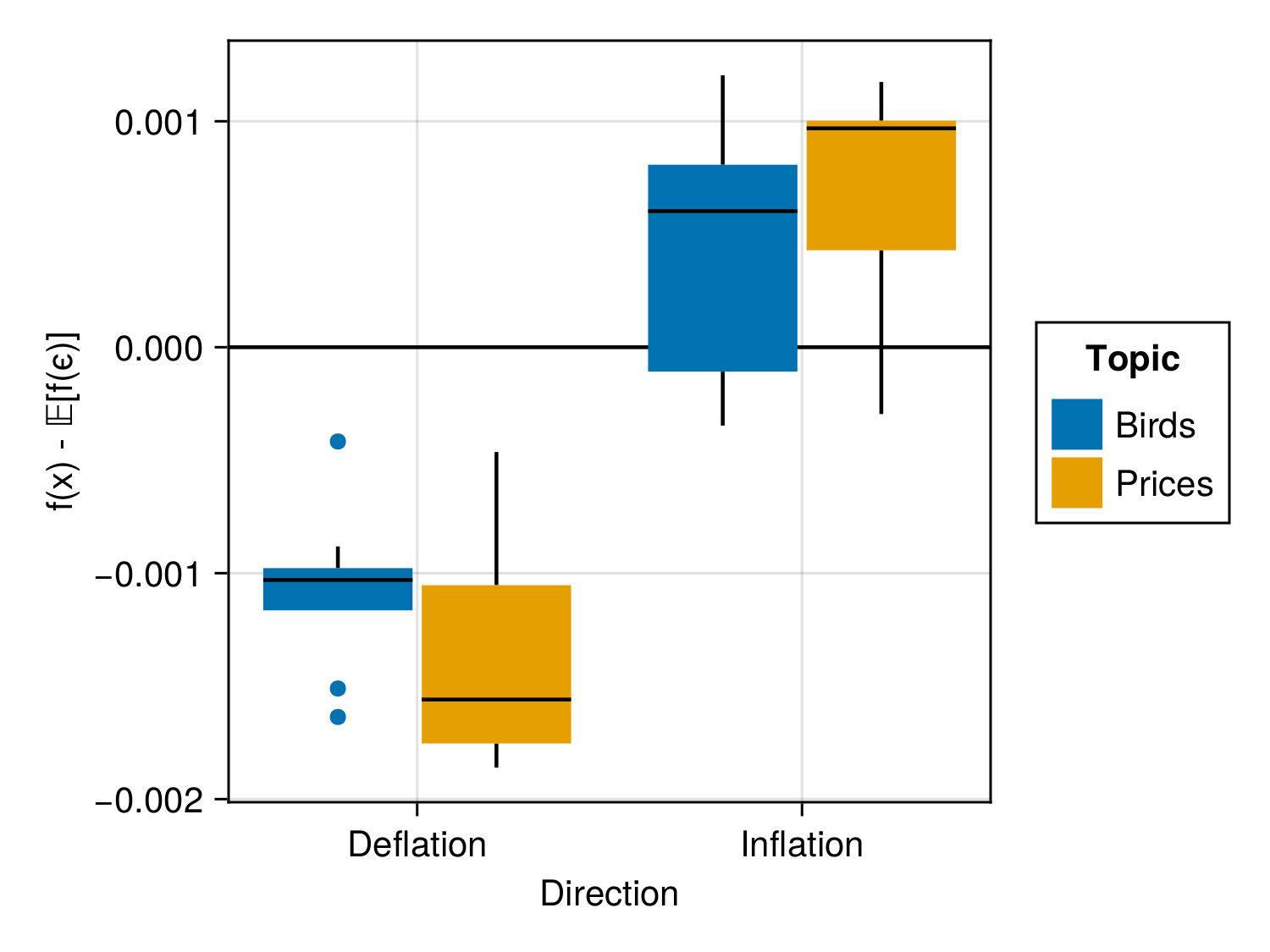

Figure 9: Inflation of prices or birds? It doesn’t matter!

Taija

  • Work presented @ JuliaCon 2022, 2023, 2024.
  • Google Summer of Code and Julia Season of Contributions 2024.
  • Total of three software projects @ TU Delft.

Trustworthy AI in Julia: github.com/JuliaTrustworthyAI
